~ let's design a bathroom

DEMO DAY

open this area all up and keep the window

Keeping it light with a few black accents.

Let's go for soft colors because it's a small room

SMALL TUBS

~WET ROOMS ~

Japanese Soakers

and Galvanized tubs

This tub is actually in a hotel!

This is Bette Midler's NYC Penthouse

How they look before they're finished, and cost about $100.

How to fiberglass anything

FOR A WATERPROOF FINISH

Epoxy finish on the outside and inside tub

You also might try a boat finish - that's in the water a lot.

WET ROOM

OPTION 1 - OUR CHOICE!

ANOTHER ACRYLIC TUB

47" l x 30"w x 28" d

Signature Hardware

$1219 with overflow - free shipping

faucet not included

OPTION 2

41" SIGLO ROUND JAPANESE SOAKING TUB - NO FAUCET HOLES

$1949

Signature Hardware

 Space = 58 wide x 82 long
leave 41" for shower.

WET ROOM INSIDE AREA: 58 wide x 82 long

From the backyard wall 185":

4" wall with insulation
36" for the tub area (tub is 30" wide) - leaves area for free standing faucet
42" shower area
4" wall
86" backside of wall - shower plumbing here
34" for toilet area
120" starts the laundry room wall
4" other side of wall
124"
61" laundry area (W/D = 54" for both)
185" to brick wall (exposed)

Leave the brick wall exposed - it's an inside wall and we can paint it white.

From the neighbors wall & windows- 125":

4" wall

54" shower & tub area

58" to shower wall

4" wall

62"

41" space between shower wall and vanity

103" edge of vanity

22" for vanity

125" existing plaster wall

SHOWER DRAINING

read up on this!

WINDOW IN SHOWER
I hate to pay for new brick

No molding around window - keeping it narrow like the rest in the house ~ add glass block.

love the idea of shelves built in.

This may then be a 6" deep wall.

A 4" threshold holds the water in and won't flood the bathroom if the drain is clogged.

I'm changing the pony wall to 36" for towels.
That makes the shower glass door 32"  ~ anything larger is too big and too expensive.
Beware: at times the glass shifts and starts to hit each other.  You will need the it repaired in a few years.

You can start with a tension rod and eventually get a glass door. The length to cover is 78"

TOILET

~ Giving the Toilet area 34 x 54 ~

In general, round-front toilets extend 25 to 28 inches from the wall. Elongated toilets extend 29 to 31 inches.

You could build out the wall behind the toilet to create a shelf area.

over the doorway

AREA CLEARANCES

VANITY AREA

Push the vanity as close to window as possible.

VERSION WITH TUB/SHOWER COMBO

I gave up on this.  The tub is 60" and that hits right in the middle of the window.  The other problem is it's over 18" tall - it's difficult getting in and out of the shower daily.

Kohler K-1100-LA-0 Expanse 60" x 38" x 18.25" Alcove Soaking Bathtub with Left Drain

$924.56 free shipping
Efaucet
This gives you 59" between vanity and shower
HOWEVER: you have to lift your leg high everytime to get in and out of tub.

27" wide each x 30" deep - with door open 43.25"....

then add plumbing area behind

Area width of laundry 87"

4" Outside wall

9"plumbing

43.25 Dryer with door open

4" inside wall with door

26" in front of dryer door

86.25"

Area length of Laundry - 61" to wall

27" dryer

27" washer

7" area around

61" to exposed brick wall

Pocket doors leading into laundry area

30" wide

MONEY SAVER

The pocket door we found in the walls ~ cut it in half , add some handles and make a new door for the laundry.

COLOR COMBINATIONS

This is the 41" round tub above.

I think too masculine and dark for the small room. But, I'm keeping it in the blog in case.

This is the layout - however the shower as shown would have walls and a small opening where the door is. And we should use clear glass because of the space.

Wonderful combination to work on.

TILES

The shower would need about 173 sq ft of tile. (It'll need more - I enlarged it)
Floor tile about 67 sq ft
Laundry room 35 sq ft

Hudson 4" x 12" Ceramic Subway Tile in Glossy White  $4.35/sq ft

WAYFAIR

Need to find tile in the $2 range.
SQUARE 6 x 6 porcelain ceramic =

My tile for flooring but expensive

Floor Bros

12 x 24 = $5.41 sq ft (price increase)

Lowes Argyle Pearl 8541767  $2.29 sq ft


School House Ceiling light.  $159 each.
Mid Century Vanity Sconce $359 each (Pricey)

Mirror with Shelf Amazon $91.00 ea.

Also needed:

TOILET
CEILING FAN

SHOWER FAUCETS
BATH FOUCETS
DRAINS
OVERHEAD LIGHTING
LIGHT IN SHOWER

Save money and find a fun Mid Century Modern dresser ~ then convert it with 2 raised sinks ~ and add a slab of remnant quartz.

Wentworth Double Bathroom 72"

Cabinet only - no top or sink

$1,459 free shipping

DOUBLE VANITY
Joss and Main
72" includes everything.
(but I would rather see gold fixtures)
$1799 ~ 4 in stock.
I like the division of the sinks ~ and storage.

SOURCE FOR VANITIES
Signature Hardware

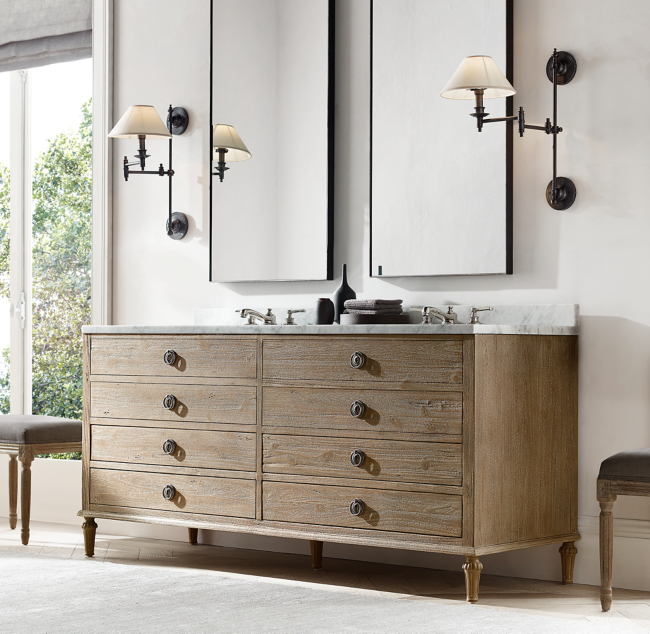

RESTORATION HARDWARE

Countertops are pre-drilled to accommodate all 8" widespread faucet sets (sold separately) and our 19" undermount basin (included)

Ceasarstone Frosty Carrina top

• Vanity With Top: 72"W x 24"D x 34"H
• $2692  MEMBER

Shades of Light
$1598
60" wide x 22 x 26
2 white undermount sinks ~ (many reviews say the sinks drop inward after awhile).
drilled for 8" spread
beveled marble backsplash

Wood Veneer for custom vanity

I like Rectangle sinks if your designing.

30 x 80 frosted glass bi fold doors

unfinished - $320

Amazon

Build a hanging rack and mount on brick wall.  Save above the storage for linen.

Or store your linen under the bed.

COSTS
Tub -

Tile around the tub -

Labor -

tile the floor - $620

Labor -

Bathtub doors or curtain-
shower and tub faucets - $1000
Shower drain pan -
Shower Drain -
Window Alterations -
Radiant floor heating

Vanity- $1900

Mirrors - $200

Toilet - $ 300

Sconces - $800
Recess Lighting
over head lighting
Lighting in Shower

Washer / Dryer - $1800

towel racks -

exhaust ceiling fan - $100
Bifold doors - $300

Approximate -
